Segment Routing Traffic Engineering Tunnel Introduction
Table of Contents
- What is Segment Routing Traffic Engineering? ‹
- Configuring Segment Routing Traffic Engineering tunnel with EVPN IRB L3VPN ‹
- Download section ‹
What is Segment Routing Traffic Engineering?
Segment Routing Traffic Engineering (TE) enables steering MPLS traffic based on a defined path to optimize network performance. So far, MPLS TE required introducing an additional protocol (RSVP) into the core network. However, this is no longer needed with SR TE.
There are multiple options to configure SR TE. For example with tunnels, or with SR TE policy (BGP color community and automated steering), or SR TE can also be configured with a PCE/PCC architecture. The following table compares advantages and disadvantages of SR TE tunnels.
| Advantage | Disadvantage |
|---|---|
| Compared to RSVP TE, the core routers do not need to negotiate and maintain a state of primary and backup tunnels with SR TE. The SR TE tunnel is only configured on the PE routers. | There is still a need to configure SR TE tunnels on the PE routers, whereas with SR TE policy and SR TE PCE/PCC there is no need for tunnels. |
| Compared to RSVP TE, SR TE has better scalability since it is integrated with the IGP and does not need an additional protocol. Thus, SR TE consumes less system resources and network bandwidth. |
Configuring Segment Routing Traffic Engineering tunnel with EVPN IRB L3VPN

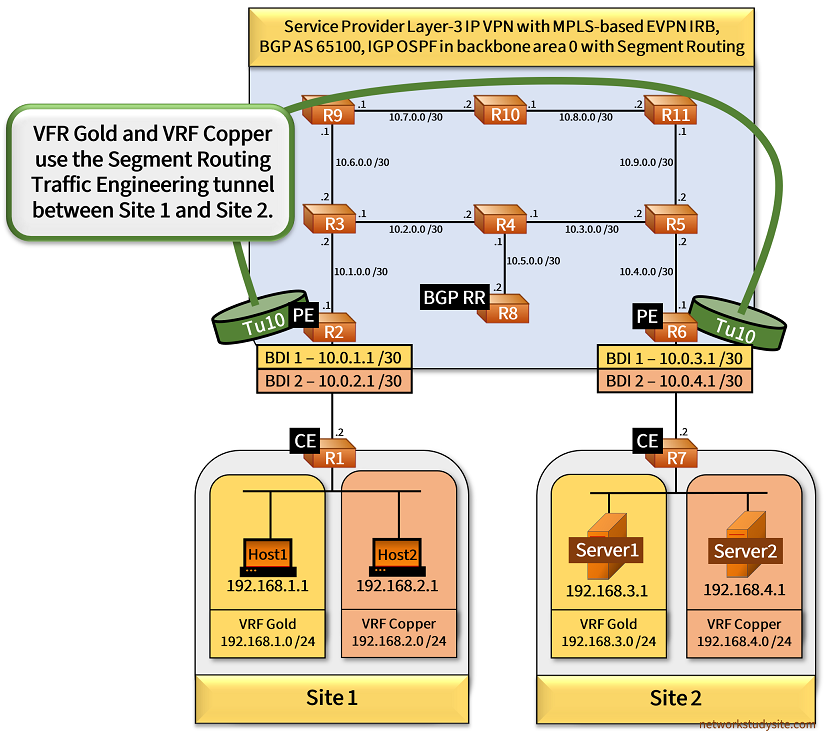

The following example topology connects two sites in VRF Gold and VRF Copper through the Service Provider (SP) MPLS Layer-3 VPN network. The SP network advertises VPN prefixes using the EVPN IRB control plane, and uses Segment Routing (SR) as the MPLS transport.
Additionally, an SR Traffic Engineering (TE) tunnel is configured in each direction between the PE routers R2 and R6. An explicit path is configured via R3-R9-R10-R11-R5, traffic in both VRFs uses this path. The SR TE tunnel configuration on PE R2 is shown below.
R2#show run int Tu10 | sec int interface Tunnel10 description ** Segment Routing TE tunnel to PE R6 ** ip unnumbered Loopback10 tunnel mode mpls traffic-eng tunnel destination 6.6.6.6 tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng path-option 1 explicit name TRAFFIC-ENGINEERING-PATH segment-routing R2#show run | sec ^ip exp ip explicit-path name TRAFFIC-ENGINEERING-PATH enable index 10 next-label 16003 index 20 next-label 16009 index 30 next-label 16010 index 40 next-label 16011 index 50 next-label 16005 index 60 next-label 16006
Important aspects of this example network are highlighted in the following list.
- MPLS TE tunnels are only enabled on the PE routers and using the command mpls traffic-eng tunnels. The RSVP protocol is not needed at all in this network.
- Traffic is routed via the MPLS TE tunnel with a static route on each PE router pointing to the far-end (next-hop) Loopback IP address.
- The EVPN IRB control plane adds an MPLS VPN service label to each site's VRF, and uses the Route Type 5 to advertise prefixes. The BGP VPNv4 address-family is not used in this network. The keyword stitching is added in Route Target import/export rules.
- The PE and CE exchange prefixes with VRF-aware eBGP neighborships. The PE router uses Layer-3 Bridge Domain Interfaces (BDI) assigned to a VRF, and the CE router uses VRF-subinterfaces. The VLAN needs to match between the CE subinterface and the Service Instance configured on the CE-facing physical interface of the PE router.
Configuration:
R2 (PE)
R2#show run | sec ^mpls mpls label range 200 299 mpls traffic-eng tunnels R2#show run | sec ^segment segment-routing mpls ! connected-prefix-sid-map address-family ipv4 2.2.2.2/32 index 2 range 1 exit-address-family ! R2#show run | sec ^vrf vrf definition Copper rd 65100:2 ! address-family ipv4 route-target export 65100:21 stitching route-target import 65100:22 stitching exit-address-family vrf definition Gold rd 65100:1 ! address-family ipv4 route-target export 65100:11 stitching route-target import 65100:12 stitching exit-address-family R2#show run int Lo10 | sec int interface Loopback10 ip address 2.2.2.2 255.255.255.255 R2#show run int Gi1 | sec int interface GigabitEthernet1 description ** to CE R1 ** no ip address negotiation auto no mop enabled no mop sysid service instance 10 ethernet encapsulation dot1q 10 rewrite ingress tag pop 1 symmetric ! service instance 20 ethernet encapsulation dot1q 20 rewrite ingress tag pop 1 symmetric ! R2#show run int Gi2 | sec int interface GigabitEthernet2 description ** to R3 - MPLS core ** ip address 10.1.0.1 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R2#show run int Tu10 | sec int interface Tunnel10 description ** Segment Routing TE tunnel to PE R6 ** ip unnumbered Loopback10 tunnel mode mpls traffic-eng tunnel destination 6.6.6.6 tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng path-option 1 explicit name TRAFFIC-ENGINEERING-PATH segment-routing R2#show run | sec ^ip exp ip explicit-path name TRAFFIC-ENGINEERING-PATH enable index 10 next-label 16003 index 20 next-label 16009 index 30 next-label 16010 index 40 next-label 16011 index 50 next-label 16005 index 60 next-label 16006 R2#show run int BDI 1 | sec int interface BDI1 description ** to CE R1 in VRF Gold ** vrf forwarding Gold ip address 10.0.1.1 255.255.255.252 no mop enabled no mop sysid R2#show run int BDI 2 | sec int interface BDI2 description ** to CE R1 in VRF Copper ** vrf forwarding Copper ip address 10.0.2.1 255.255.255.252 no mop enabled no mop sysid R2#show run | sec ^l2vpn l2vpn evpn replication-type ingress mpls label mode per-ce router-id Loopback10 l2vpn evpn instance 100 vlan-based l2vpn evpn instance 200 vlan-based R2#show run | sec ^bridge-domain bridge-domain 1 member GigabitEthernet1 service-instance 10 member evpn-instance 100 bridge-domain 2 member GigabitEthernet1 service-instance 20 member evpn-instance 200 R2#show run | sec ^router router ospf 10 router-id 2.2.2.2 segment-routing area 0 mpls segment-routing mpls network 2.2.2.2 0.0.0.0 area 0 network 10.1.0.0 0.0.0.3 area 0 mpls traffic-eng router-id Loopback10 mpls traffic-eng area 0 router bgp 65100 bgp router-id 2.2.2.2 bgp log-neighbor-changes neighbor 8.8.8.8 remote-as 65100 neighbor 8.8.8.8 update-source Loopback10 ! address-family l2vpn evpn neighbor 8.8.8.8 activate neighbor 8.8.8.8 send-community both exit-address-family ! address-family ipv4 vrf Copper advertise l2vpn evpn network 10.0.2.0 mask 255.255.255.252 neighbor 10.0.2.2 remote-as 65001 neighbor 10.0.2.2 activate exit-address-family ! address-family ipv4 vrf Gold advertise l2vpn evpn network 10.0.1.0 mask 255.255.255.252 neighbor 10.0.1.2 remote-as 65001 neighbor 10.0.1.2 activate exit-address-family R2#show run | sec ^ip route ip route 6.6.6.6 255.255.255.255 Tunnel10
R6 (PE)
R6#show run | sec ^mpls mpls label range 600 699 mpls traffic-eng tunnels R6#show run | sec ^segment segment-routing mpls ! connected-prefix-sid-map address-family ipv4 6.6.6.6/32 index 6 range 1 exit-address-family ! R6#show run | sec ^vrf vrf definition Copper rd 65100:2 ! address-family ipv4 route-target export 65100:22 stitching route-target import 65100:21 stitching exit-address-family vrf definition Gold rd 65100:1 ! address-family ipv4 route-target export 65100:12 stitching route-target import 65100:11 stitching exit-address-family R6#show run int Lo10 | sec int interface Loopback10 ip address 6.6.6.6 255.255.255.255 R6#show run int Gi1 | sec int interface GigabitEthernet1 description ** to CE R7 ** no ip address negotiation auto no mop enabled no mop sysid service instance 10 ethernet encapsulation dot1q 10 rewrite ingress tag pop 1 symmetric ! service instance 20 ethernet encapsulation dot1q 20 rewrite ingress tag pop 1 symmetric ! R6#show run int Gi2 | sec int interface GigabitEthernet2 description ** to R5 - MPLS core ** ip address 10.4.0.1 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R6#show run int Tu10 | sec int interface Tunnel10 description ** Segment Routing TE tunnel to PE R2 ** ip unnumbered Loopback10 tunnel mode mpls traffic-eng tunnel destination 2.2.2.2 tunnel mpls traffic-eng priority 1 1 tunnel mpls traffic-eng path-option 1 explicit name TRAFFIC-ENGINEERING-PATH segment-routing R6#show run | sec ^ip exp ip explicit-path name TRAFFIC-ENGINEERING-PATH enable index 10 next-label 16005 index 20 next-label 16011 index 30 next-label 16010 index 40 next-label 16009 index 50 next-label 16003 index 60 next-label 16002 R6#show run int BDI 1 | sec int interface BDI1 description ** to CE R7 in VRF Gold ** vrf forwarding Gold ip address 10.0.3.1 255.255.255.252 no mop enabled no mop sysid R6#show run int BDI 2 | sec int interface BDI2 description ** to CE R7 in VRF Copper ** vrf forwarding Copper ip address 10.0.4.1 255.255.255.252 no mop enabled no mop sysid R6#show run | sec ^l2vpn l2vpn evpn replication-type ingress mpls label mode per-ce router-id Loopback10 l2vpn evpn instance 100 vlan-based l2vpn evpn instance 200 vlan-based R6#show run | sec ^bridge-domain bridge-domain 1 member GigabitEthernet1 service-instance 10 member evpn-instance 100 bridge-domain 2 member GigabitEthernet1 service-instance 20 member evpn-instance 200 R6#show run | sec ^router router ospf 10 router-id 6.6.6.6 segment-routing area 0 mpls segment-routing mpls network 6.6.6.6 0.0.0.0 area 0 network 10.4.0.0 0.0.0.3 area 0 mpls traffic-eng router-id Loopback10 mpls traffic-eng area 0 router bgp 65100 bgp router-id 6.6.6.6 bgp log-neighbor-changes neighbor 8.8.8.8 remote-as 65100 neighbor 8.8.8.8 update-source Loopback10 ! address-family l2vpn evpn neighbor 8.8.8.8 activate neighbor 8.8.8.8 send-community both exit-address-family ! address-family ipv4 vrf Copper advertise l2vpn evpn network 10.0.4.0 mask 255.255.255.252 neighbor 10.0.4.2 remote-as 65002 neighbor 10.0.4.2 activate exit-address-family ! address-family ipv4 vrf Gold advertise l2vpn evpn network 10.0.3.0 mask 255.255.255.252 neighbor 10.0.3.2 remote-as 65002 neighbor 10.0.3.2 activate exit-address-family R6#show run | sec ^ip route ip route 2.2.2.2 255.255.255.255 Tunnel10
R8 (BGP RR)
R8#show run int Lo10 | sec int interface Loopback10 ip address 8.8.8.8 255.255.255.255 R8#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to R4 ** ip address 10.5.0.2 255.255.255.252 ip ospf network point-to-point duplex auto speed auto media-type rj45 R8#show run | sec ^router router ospf 10 router-id 8.8.8.8 network 8.8.8.8 0.0.0.0 area 0 network 10.5.0.0 0.0.0.3 area 0 router bgp 65100 bgp router-id 8.8.8.8 bgp log-neighbor-changes neighbor 2.2.2.2 remote-as 65100 neighbor 2.2.2.2 update-source Loopback10 neighbor 6.6.6.6 remote-as 65100 neighbor 6.6.6.6 update-source Loopback10 ! address-family l2vpn evpn neighbor 2.2.2.2 activate neighbor 2.2.2.2 send-community both neighbor 2.2.2.2 route-reflector-client neighbor 6.6.6.6 activate neighbor 6.6.6.6 send-community both neighbor 6.6.6.6 route-reflector-client exit-address-family
R3
R3#show run | sec ^segment segment-routing mpls ! connected-prefix-sid-map address-family ipv4 3.3.3.3/32 index 3 range 1 exit-address-family ! R3#show run int Lo10 | sec int interface Loopback10 ip address 3.3.3.3 255.255.255.255 R3#show run int Gi1 | sec int interface GigabitEthernet1 description ** to PE R2 ** ip address 10.1.0.2 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R3#show run int Gi2 | sec int interface GigabitEthernet2 description ** to R4 ** ip address 10.2.0.1 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R3#show run | sec ^router router ospf 10 router-id 3.3.3.3 segment-routing area 0 mpls segment-routing mpls network 3.3.3.3 0.0.0.0 area 0 network 10.1.0.0 0.0.0.3 area 0 network 10.2.0.0 0.0.0.3 area 0 network 10.6.0.0 0.0.0.3 area 0
R4
R4#show run | sec ^segment segment-routing mpls ! connected-prefix-sid-map address-family ipv4 4.4.4.4/32 index 4 range 1 exit-address-family ! R4#show run int Lo10 | sec int interface Loopback10 ip address 4.4.4.4 255.255.255.255 R4#show run int Gi1 | sec int interface GigabitEthernet1 description ** to R3 ** ip address 10.2.0.2 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R4#show run int Gi2 | sec int interface GigabitEthernet2 description ** to R5 ** ip address 10.3.0.1 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R4#show run int Gi3 | sec int interface GigabitEthernet3 description ** to BGP RR R8 ** ip address 10.5.0.1 255.255.255.252 ip ospf network point-to-point negotiation auto no mop enabled no mop sysid R4#show run | sec ^router router ospf 10 router-id 4.4.4.4 segment-routing area 0 mpls segment-routing mpls network 4.4.4.4 0.0.0.0 area 0 network 10.2.0.0 0.0.0.3 area 0 network 10.3.0.0 0.0.0.3 area 0 network 10.5.0.0 0.0.0.3 area 0
R1 (CE)
R1#show run | sec ^vrf vrf definition Copper rd 2:2 ! address-family ipv4 exit-address-family vrf definition Gold rd 1:1 ! address-family ipv4 exit-address-family R1#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to Host1 and Host2 ** no ip address duplex auto speed auto media-type rj45 R1#show run int Gi0/0.10 | sec int interface GigabitEthernet0/0.10 description ** to Host1 in VRF Gold (VLAN 10) ** encapsulation dot1Q 10 vrf forwarding Gold ip address 192.168.1.2 255.255.255.0 R1#show run int Gi0/0.20 | sec int interface GigabitEthernet0/0.20 description ** to Host2 in VRF Copper (VLAN 20) ** encapsulation dot1Q 20 vrf forwarding Copper ip address 192.168.2.2 255.255.255.0 R1#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to PE R2 ** no ip address duplex auto speed auto media-type rj45 R1#show run int Gi0/1.10 | sec int interface GigabitEthernet0/1.10 description ** to PE R2 in VRF Gold ** encapsulation dot1Q 10 vrf forwarding Gold ip address 10.0.1.2 255.255.255.252 R1#show run int Gi0/1.20 | sec int interface GigabitEthernet0/1.20 description ** to PE R2 in VRF Copper ** encapsulation dot1Q 20 vrf forwarding Copper ip address 10.0.2.2 255.255.255.252 R1#show run | sec ^router router bgp 65001 bgp router-id 1.1.1.1 bgp log-neighbor-changes ! address-family ipv4 vrf Copper network 192.168.2.0 neighbor 10.0.2.1 remote-as 65100 neighbor 10.0.2.1 activate exit-address-family ! address-family ipv4 vrf Gold network 192.168.1.0 neighbor 10.0.1.1 remote-as 65100 neighbor 10.0.1.1 activate exit-address-family
R7 (CE)
R7#show run | sec ^vrf vrf definition Copper rd 2:2 ! address-family ipv4 exit-address-family vrf definition Gold rd 1:1 ! address-family ipv4 exit-address-family R7#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to Server1 and Server2 ** no ip address duplex auto speed auto media-type rj45 R7#show run int Gi0/0.10 | sec int interface GigabitEthernet0/0.10 description ** to Server1 in VRF Gold (VLAN 10) ** encapsulation dot1Q 10 vrf forwarding Gold ip address 192.168.3.2 255.255.255.0 R7#show run int Gi0/0.20 | sec int interface GigabitEthernet0/0.20 description ** to Server2 in VRF Copper (VLAN 20) ** encapsulation dot1Q 20 vrf forwarding Copper ip address 192.168.4.2 255.255.255.0 R7#show run int Gi0/1 | sec int interface GigabitEthernet0/1 description ** to PE R6 ** no ip address duplex auto speed auto media-type rj45 R7#show run int Gi0/1.10 | sec int interface GigabitEthernet0/1.10 description ** to PE R6 in VRF Gold ** encapsulation dot1Q 10 vrf forwarding Gold ip address 10.0.3.2 255.255.255.252 R7#show run int Gi0/1.20 | sec int interface GigabitEthernet0/1.20 description ** to PE R6 in VRF Copper ** encapsulation dot1Q 20 vrf forwarding Copper ip address 10.0.4.2 255.255.255.252 R7#show run | sec ^router router bgp 65002 bgp router-id 7.7.7.7 bgp log-neighbor-changes ! address-family ipv4 vrf Copper network 192.168.4.0 neighbor 10.0.4.1 remote-as 65100 neighbor 10.0.4.1 activate exit-address-family ! address-family ipv4 vrf Gold network 192.168.3.0 neighbor 10.0.3.1 remote-as 65100 neighbor 10.0.3.1 activate exit-address-family
Host1
Host1#show run int Gi0/0 | sec int interface GigabitEthernet0/0 description ** to CE R1 ** ip address 192.168.1.1 255.255.255.0 duplex auto speed auto media-type rj45 Host1#show run | sec ^ip route ip route 0.0.0.0 0.0.0.0 192.168.1.2
Host1#ping 192.168.3.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.3.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 95/96/100 ms « Host1 (Site 1) can reach Server1 (Site 2) Host1#trace 192.168.3.1 probe 1 Type escape sequence to abort. Tracing the route to 192.168.3.1 VRF info: (vrf in name/id, vrf out name/id) 1 192.168.1.2 3 msec 2 10.0.1.1 25 msec 3 10.1.0.2 [MPLS: Labels 16009/16010/16011/16005/16006/607 Exp 0] 93 msec « Segment Routing TE label stack is used 4 10.6.0.1 [MPLS: Labels 16010/16011/16005/16006/607 Exp 0] 94 msec 5 10.7.0.2 [MPLS: Labels 16011/16005/16006/607 Exp 0] 93 msec 6 10.8.0.2 [MPLS: Labels 16005/16006/607 Exp 0] 94 msec 7 10.9.0.2 [MPLS: Labels 16006/607 Exp 0] 94 msec 8 10.0.3.1 [MPLS: Label 607 Exp 0] 73 msec « PE R6 assigns the VPN service label 9 10.0.3.2 94 msec 10 192.168.3.1 96 msec Host2#ping 192.168.4.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.4.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 93/96/98 ms Host2#trace 192.168.4.1 probe 1 Type escape sequence to abort. Tracing the route to 192.168.4.1 VRF info: (vrf in name/id, vrf out name/id) 1 192.168.2.2 3 msec 2 10.0.2.1 26 msec 3 10.1.0.2 [MPLS: Labels 16009/16010/16011/16005/16006/609 Exp 0] 94 msec 4 10.6.0.1 [MPLS: Labels 16010/16011/16005/16006/609 Exp 0] 92 msec 5 10.7.0.2 [MPLS: Labels 16011/16005/16006/609 Exp 0] 92 msec 6 10.8.0.2 [MPLS: Labels 16005/16006/609 Exp 0] 93 msec 7 10.9.0.2 [MPLS: Labels 16006/609 Exp 0] 93 msec 8 10.0.4.1 [MPLS: Label 609 Exp 0] 72 msec 9 10.0.4.2 93 msec 10 192.168.4.1 95 msec

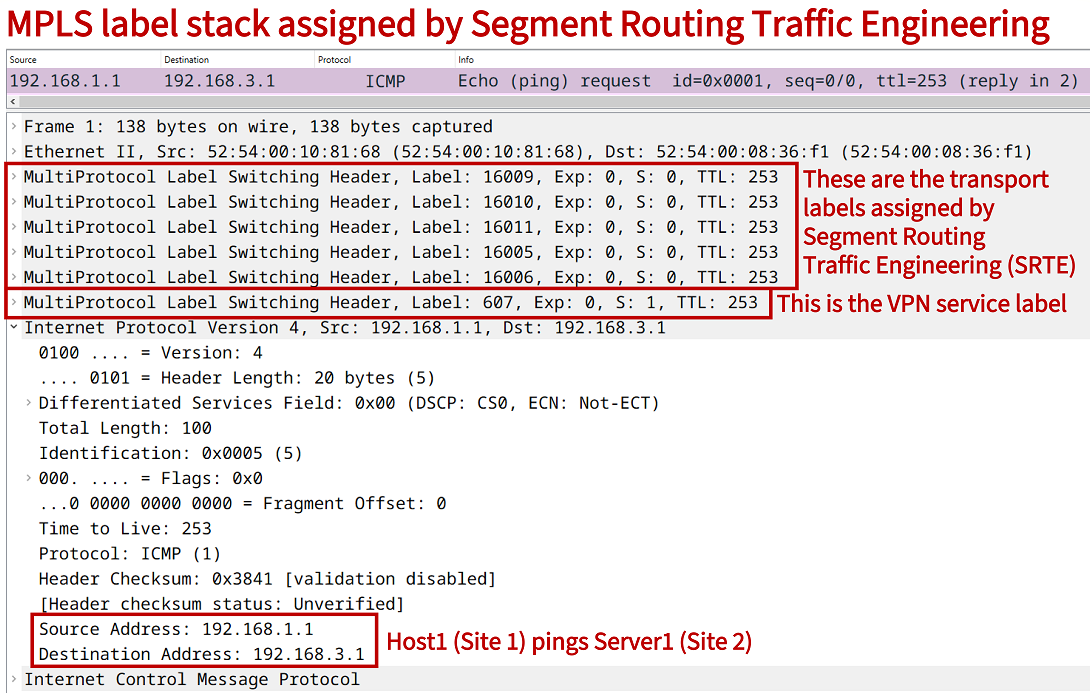

It is visible in the above outputs how Segment Routing Traffic Engineering assigns a label stack to traffic, and at each next-hop the top label is popped (removed). This exposes the next label which moves traffic forward along the predefined explicit path. Thus, at the first hop after traffic leaves PE R2 (towards PE R6) there are six MPLS labels attached to each packet. These MPLS labels are also called a SID list, and are inserted by a head-end router configured with SR TE (in this case PE R2).

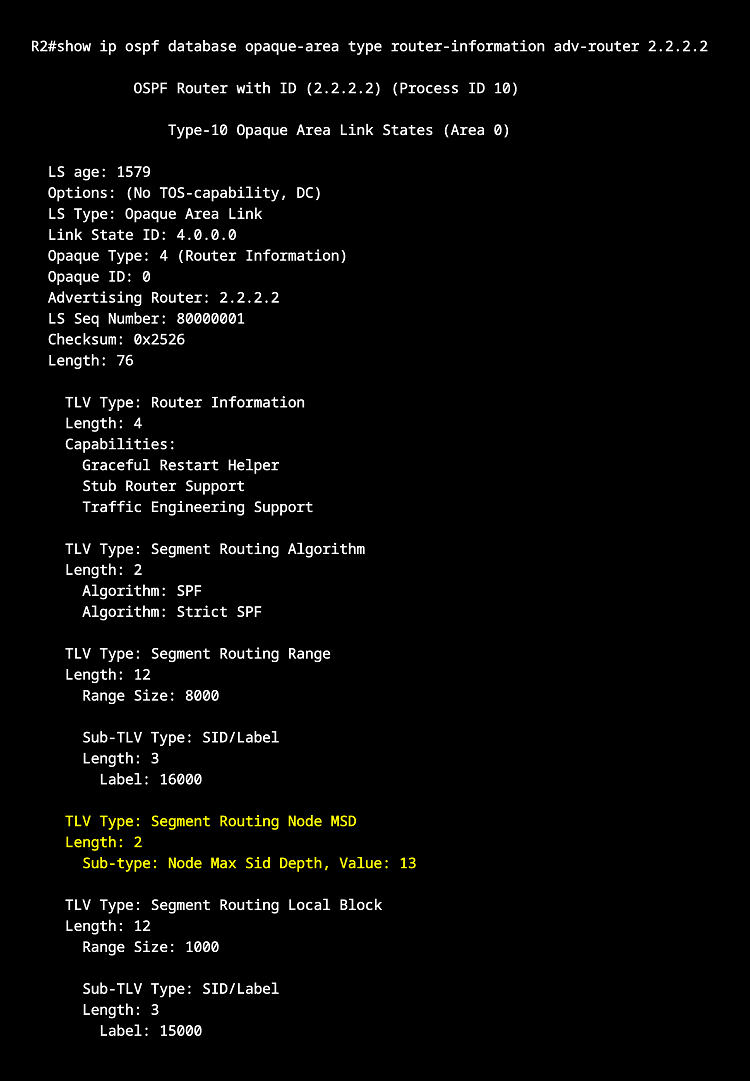

A SID list is an ordered list of segments instructing the path of a packet. The SID list could exceed the Maximum SID Depth (MSD) of an intermediary node in the MPLS core. The following outputs are taken from the BGP Route Reflector R8 and show the EVPN Type 5 routes received from each PE router.
R8#show ip bgp l2vpn evpn rd 65100:1 | beg Ne Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65100:1 *>i [5][65100:1][0][24][192.168.1.0]/17 « VRF Gold Site 1 prefix 2.2.2.2 0 100 0 65001 i *>i [5][65100:1][0][24][192.168.3.0]/17 « VRF Gold Site 2 prefix 6.6.6.6 0 100 0 65002 i *>i [5][65100:1][0][30][10.0.1.0]/17 2.2.2.2 0 100 0 i *>i [5][65100:1][0][30][10.0.3.0]/17 6.6.6.6 0 100 0 i R8#show ip bgp l2vpn evpn rd 65100:2 | beg Ne Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65100:2 *>i [5][65100:2][0][24][192.168.2.0]/17 2.2.2.2 0 100 0 65001 i *>i [5][65100:2][0][24][192.168.4.0]/17 6.6.6.6 0 100 0 65002 i *>i [5][65100:2][0][30][10.0.2.0]/17 2.2.2.2 0 100 0 i *>i [5][65100:2][0][30][10.0.4.0]/17 6.6.6.6 0 100 0 i
